Automatic Side Sealing Machine and Shrink Machine

Automatic side sealing machine and shrink machine This machine is widely used in photo frame, aluminum profile, water pipe, wood floor, and other industries shrink packaging. It is suit of POF, PE, PVC and other packaging material automatic side sealing machine characteristic : 1. it is used to...
Product Details:

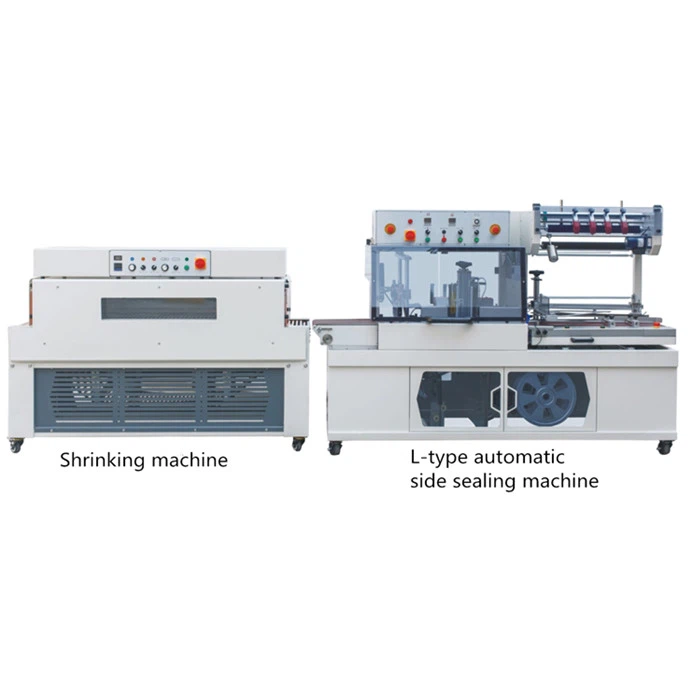

Automatic side sealing machine and shrink machine


 This machine is  widely used in photo frame, aluminum profile, water pipe, wood floor, and other  industries shrink packaging. It is suit of POF, PE, PVC and other packaging  material


automatic side sealing machine characteristic
 1. it is used to high capacity packing production line,  feeding, conveying, entering bag, sealing can be finished at a time, it has  high working efficiency.
 2. Vertical sealing adopts high quality supporting structure  and two sides linear guide way to make sealing pressure balanced, frame won’t  be damaged easily. The sealing knife adopts copper alloy sprayed with teflon,  it won't stick film, sealing fastness, without smoke, non-pollution
 3. Side sealing adopts constant temperature sealing knife,  sealing part is straight and strong, and there is no limited about packing  object length. Film feeding belt adopts widen and thicken belt, it’s using life  is long and easily to be replaced.
 4. Machine adopt PLC controller, it is equipped with  horizontal and vertical photo sensor to reach high speed and automatic working.
 5. It is easy to change the size, just need adjust the  handle, operation is easy.
 6. It can be connected with a production line
 7. it has protection function to avoid sealing product wrong  and ensure the safety of operator
 8. Optional function is front inlet feeding conveyor.


 shrink packaging machine characteristic
 1. It adopts Schneider AC contactor, high-power Solid-state  booster and intelligent temperature controller to make temperature system more  accurate, prolong the working life.
 2. It adopts solid roller conveyor, the rollers wrapped with  high temperature silica gel tube. It can stand heavy product and difficult  abraded (you can choose net type conveyor)
 3. Solid roller rotate with conveying chain, at the same  time solid roller rotate by itself, down side sealing effect of object won’t  affect by roller, each side sealing effect is firm.
 4. It adopts high-power fan motor to ensure enough strong  wind to reach perfect packing effect.
 5. Inside wall adopts stainless steel, temperature  transfer is uniform, heat loss is little. Two sides have adjusting door, it can  be adjusted according to the shape of object to reach the best shrink effect.


 Model

TFD-AB200

TFD-BS200

Max packing size (mm)

L ∞,    W+2H≤450,H<180

W450×H200

Max sealing size(mm)

W450


Power(KW)

1.40

9

Capacity

0-21 pcs/min

0-16m/min

Voltage

220V 50/60HZ

380V 50/60HZ

Sealing temperature

180℃—250℃    depends on thickness of film and environment temperature

Thickness of    film(mm)

0.015-0.10

Air pressure(Kg/cm2)

5

Packing material

POF PVC

Machine weight(kg)

340

220

Machine size(mm)

L1700×W1000×H1500

L1700×W1000×H1310
