Description of Breadstick Packaging Machine:

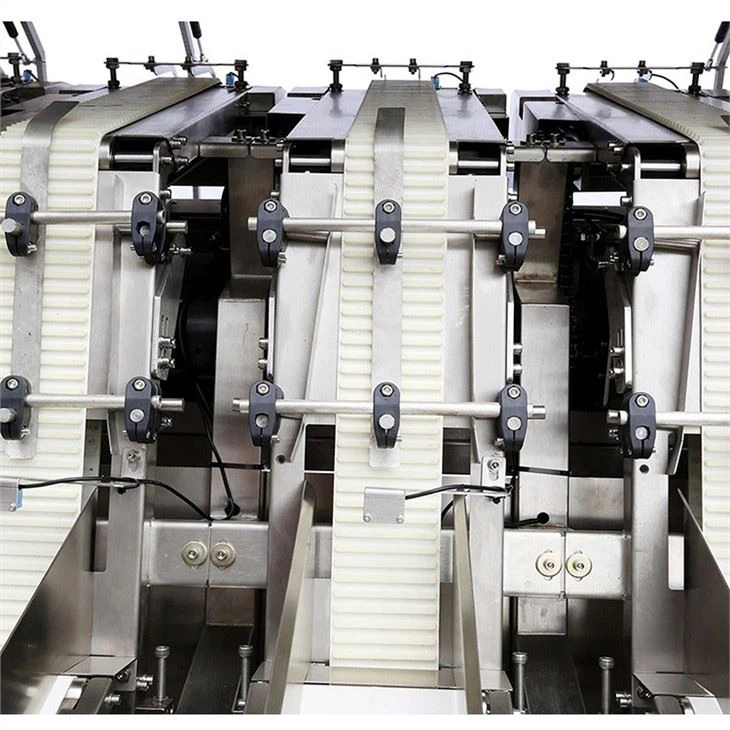

Automatic stick biscuit count and pack machine is suitable for strip products (such as breadsticks, egg rolls, wafer roll, ham sausage). The automatic stick biscuit count and pack machine uses servo systems in cooperation with the main control system to complete functions such as automatic counting, loading, stacking and conveying. It can help to save the labors and improve the production capacity greatly. The automatic stick biscuit count and pack machine can meet various packing style according to customer’s requirement.
Please Click to Play the Video:
The automatic stick biscuit count and pack machine manufacturing:
The automatic stick biscuit count and pack machine working Process:
product conveying →product lifting→counting→stacking
→conveying with a cup or tray→packaging
The Main Technological Parameter of Breadstick Packaging Machinery
Model | TFD-ZT300 |
Packing speed | 1200-1800 stick/ min/ (6 lines) |
Machine size | L6000*W1750*H1300(MM) |
Power specification |
AC 220V 50Hz |
Power | 5KW |
Packing speed | 50-120 bag/min |
Air requirements | 0.6Mpa |
Application Scope:
The main features of breadstick packaging machinery:
l High packing speed, can save much labor cost and increasing the packing efficiency. The product sorting and packing capacity: 30-120packs per minute (depends on the product and packaging materials)
l The system can complete the automatic plastic tray separation, (finger biscuit, breadstick, wafer roll, egg roll) products of the automatic counting and filling in the tray or cup, automatic sorting, and packaging functions. No one touched the food during the packaging process. Reduce secondary pollution and meet food hygiene requirements.
l High-precision and high-sensitivity SICK electric eye-tracking system for precise control, can prevent empty packs.
l High counting accuracy; adopting PLC and three servo motor, more easy to operate. Real-time interactive operation with embedded PLC to achieve intelligent control of the whole machine. Configure product menu function, product adjustment is convenient and quick.
l Machine is compact, can saving working space.
l Using high quality electric components, machine performance is more stable.
