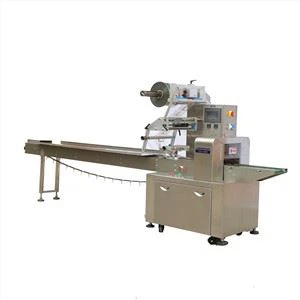

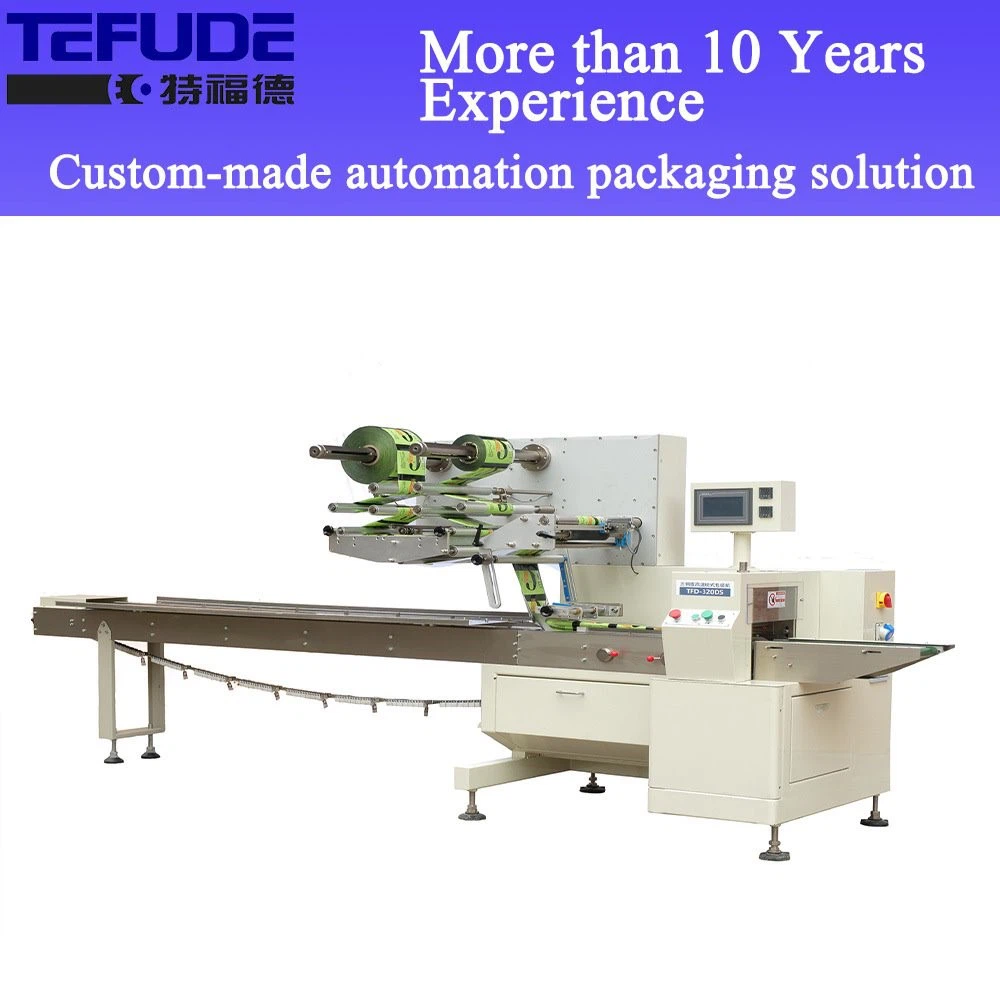

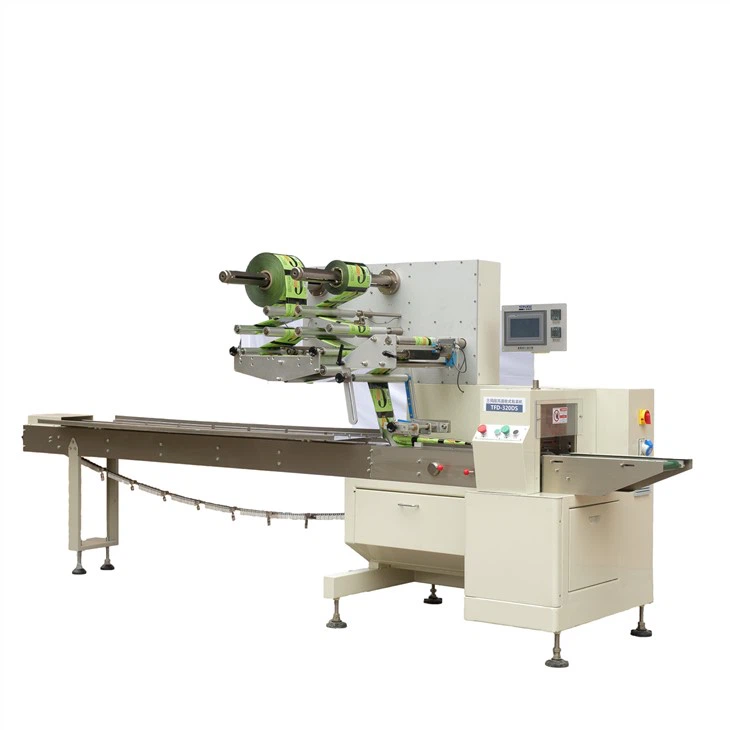

The TFD-380DS automatic flow wrapper with 3 servo motors. The packing speed is up to 250 bags in one minute. Good quality and competitive price make our products are hot sell in our domestic and oversea markets.

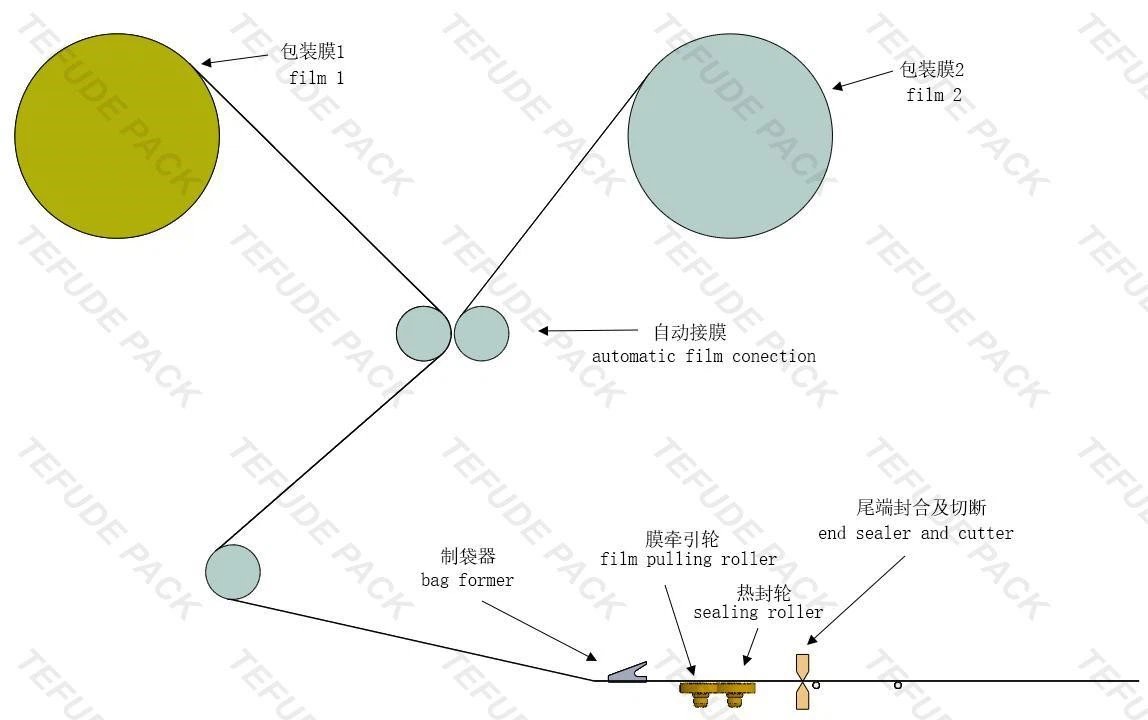

Process flow chart:
Mode of product | TFD-320DS | TFD-380DS | TFD-480DS |
Packing speed | 35-300bags/min | 35-300bags/min | 35-300bags/min |
Bag size | (L)80-480(W)30-220(H)5-35MM | (L)80-480(W)30-220(H)5-60MM | (L)80-480(W)30-220(H)5-80MM |
Film width | 80-300mm | 80-350mm | 80-450mm |
Packing material | OPP/CPP PT/PE KOP/CPP ALU-FOIL | ||
Dimension | (L)4000mmx(W)950mmx(H)1600mm | ||
Motor power | About 5.0KW | About 5.0KW | About 5.0KW |
Power supply | AC 200V 50HZ | AC 200V 50HZ | AC 200V 50HZ |
Gross Weight | 800kgs | 800kgs | 800kgs |
Three servo driving, motion control system CPU.
Double film roll, dual roll film splice function, reduce film exhange time.
Man-machine interface and parameter setting and convenient and quick.
Easy to adjust the packing speed and bag length.
With high-precision and high-sensitive electeric eye tracking system, accurately control product position.
Independent sealing temperature control system.
Suitable for many kinds of packaging materials, beautiful and tight sealing.
Anti-cutting material, standby function without porduct.
Fault self-diagnosis&eliminate function.
Optional devices: printer, nitrogen charging device and alcohol spraying device.
