Name: Dual Roll Flow Wrapper
Brand: Tefude
SKU: 141157299

Description

Technical Parameters

DESCRIPTION OF PRODUCT:

Dual roll flow wrapper machine with double roll that will save time to exchange packaging film and prevent the machine stopping to exchange the film to improve the working efficiency. In the future trend, dual roll flow wrapper might replace of single roll flow wrapper, because dual roll flow wrapper can greatly improve the working efficiency that’s more fit for economy benefits.

BASIC INFORMATION:

Packaging	Bag	Material Type	Solid
Packing Speed	35-300bags/min	Packaging Material	Plastic
Core Component	PLC,Motor	Driven	Electric
Machine Dimension	(L)4000(W)950(H)1600mm	Power Supply	AC 200V 50Hz
Gross Weight	800KG	Film Width	80-300mm
Packing Film	OPP/CPP,PT/PE,KOP/CPP,ALU-FOIL	Packing Type	Full Automatic
Bag Size	(L)80-480 (W)30-220 (H)5-35mm	Motor Power	5.0KW
Warranty	1 years	Trademark	TEFUDE
Transport Packaging	Normal Export Wooden Case Packaging	Origin	China
Application Range	Moon Cake, Bread, Instant Noodle, Biscuit, Candy, Pharmaceuticals, Daily Necessaries, Hardware parts, paper box and various regular solid products etc.	Remark	custom-made

Main Function characteristics:

1. Controlled by three servo motor, motion control system CPU.

2. Double roller, automatically connect to the film to reduce the time to exchange film.

3. Man-machine interface and parameter setting that’s easy and convenient to operate.

4. Embedded PLC intelligently control the packing speed and bag length.

5. High sensitive photoelectric eye automatic precisely tracking the product’s position.

6. PID control the sealing temperature.

7. No product in feed standby function that can prevent to cut the packing film.

8. The system can self diagnosis the fault and eliminate automatically.

DETAILS OF PRODUCT

dual roll flow wrapper packaging machines dual roll splice.jpg

Adjustable bag former system, it can adjust the bag size according to the specific requirement.

dual roll flow wrapper packing machine automatically flow wrapping.jpg

Color LCD touch interface man-machine screen, easy to operate.

dual roll flow wrapper automatic dual roll packaging machinery.jpg

Double Roller, automatically connect to the film, which it’s quick and convenient.

dual roll flow wrapper packaging machines automatically bread packing machine.jpg

Output conveyor. After packing the product, automatically convey to the front end.

dual roll flow wrapper biscuit packinng machine double roll flow wrapping packaging machine.jpg

Controlled by three servo. One servo control the cutter, one servo control the packing film flow, another one control the packaging machine tail stock’s transmit.

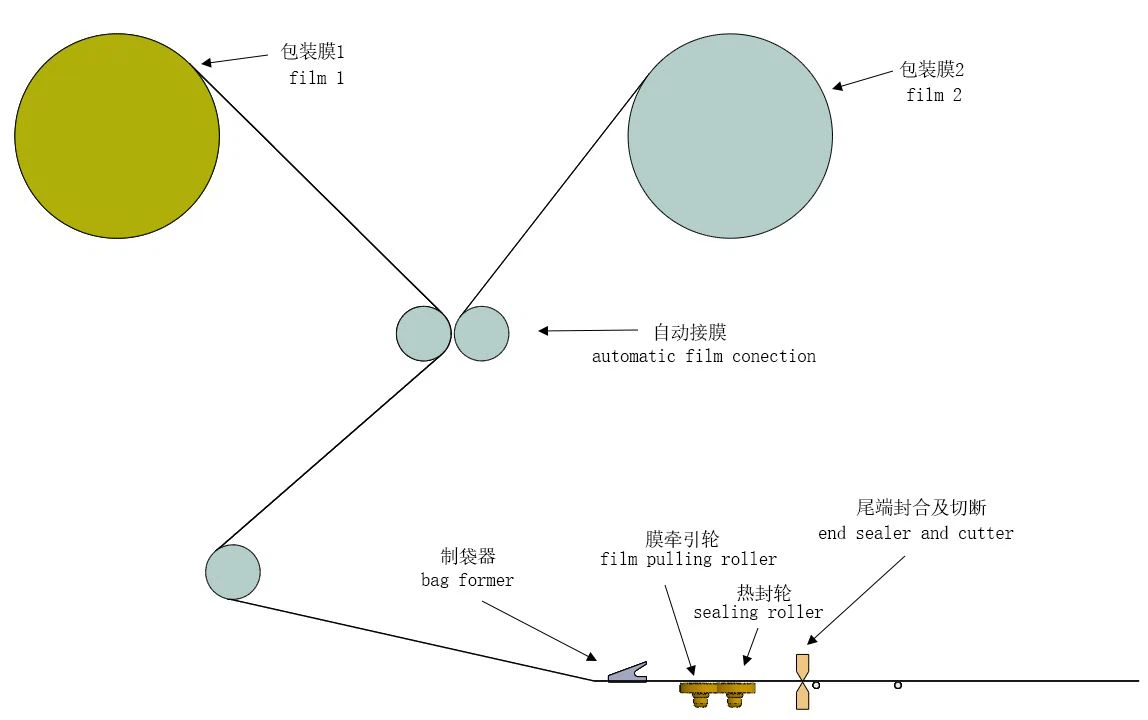

Flow Chart

dual roll flow wrapper packaging machines dual roll splice flow wrapper.png

Application: Pillow type packaging machine had been applied for food industry, pharmaceuticals industry, daily chemical and hardware part industry, such as moon cake, bread, instant noodle, candy etc.

dual roll flow wrapper automatic packaging machines dual roll flow wrapping.jpg

AFTER SALE SERVICE:

1. 24/7 online service, make your query resolved in time.

2. Installation video provided.

3. Technician is available to service abroad.

4. Engineer is available to design the packaging solution.
