Foshan TEFUDE Automation Science & Technology Co., Ltd. is a 13-year manufacturer and supplier, providing automatic sorting & loading packing solutions. Up to now, we have served over 50 countries, and successfully finished over 1500 large packing line projects. The 24 national patents and CE certification guarantee professional quality for you. In addition, we offer onsite technical support and free training courses. No worries about the technical issues.
Online Company and Factory Tour
Basic Product Information

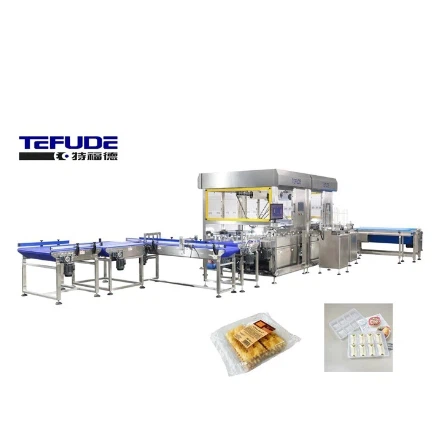

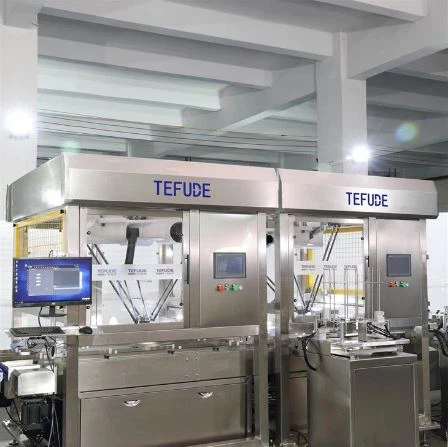

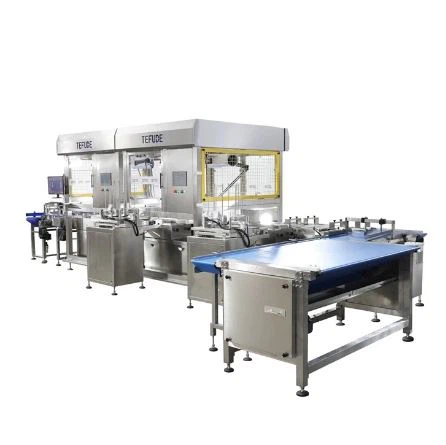

This is an improved automatic packing line. It can realize a series of processes, including automatic material sorting, loading, counting and packing. It is special in the design of the robotic arm. The robotic arm fixture can be replaced, in order to pack products of different material, shapes, and sizes. During the production process, it will not affect the product quality.
We can customize the packing line for you to achieve more efficient, more accurate, more stable, safer, and more hygienic packaging processes. The automatic packing line can serve many different industries, not only food industry.

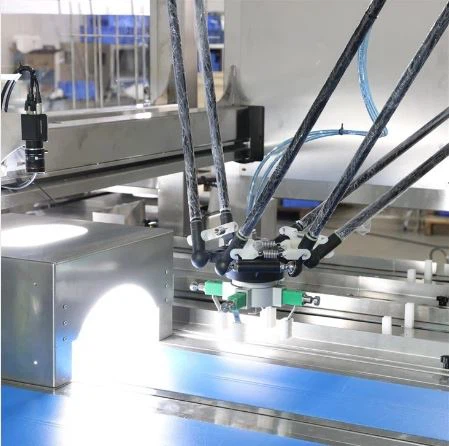

Operation of Robotic Arm
In this video, you can see how the robotic arm achieves high speed, high precision, stable and safe material in the automatic sorting & loading packing line. We can change the robotic arm fixture for you, to adapt to the products of different material, shapes and sizes.
Main Technological Parameter
|
Model |
TFD-ZT200 |
|
Patent No. |
ZL 2014 2 0035328.2 |
|
Main Feeding Belt Width |
600mm/700mm/800mm/1000mm |
|
Packing Speed |
80-200 bags/min |
|
Power Specification |
6.0KW/220V 50/60Hz According to the actual situation |
|
Machine Size |
(L)8000 * (W)2200 * (H)1500 mm According to the actual situation |
Detailed Functions and Characteristics
1. Material Sorting and Packing Capacity: 80-200 packages/ minute. It is subject t o the product and packaging material.
2. Rapid adjustment of large and small pallets, adapt to various product demands.
3. The system could automatically separate and open box, automatically order box, automatically put in deoxidizer packets, automatically sort and package. No person contacts the food during the packaging process, to reduce secondary pollution and satisfy food sanitation requirement
4. With high-precision and high sensitive SICK electric eye tracking system, you can accurately control material position.

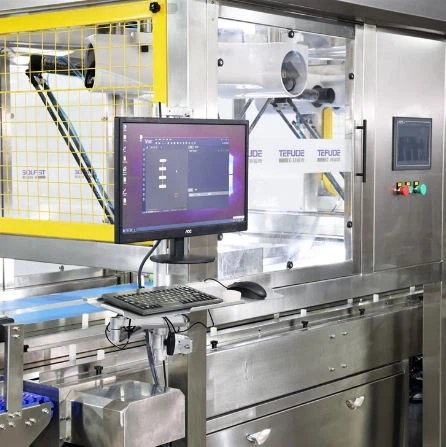

5. The system realizes complete machine intelligent control through real-time interactive operation of touch screen and embedded PLC. Allocate product menu function for convenient and rapid adjustment of product.
6. The system adopts multistage frequency conversion, speed adjustment, and servo drive control. Easy, convenient, stable and reliable operation, highly accurate control and low energy consumption.
7. The whole machine has cantilever frame design for easy and convenient installation, dismantling, maintenance and cleanness.
