Products Description

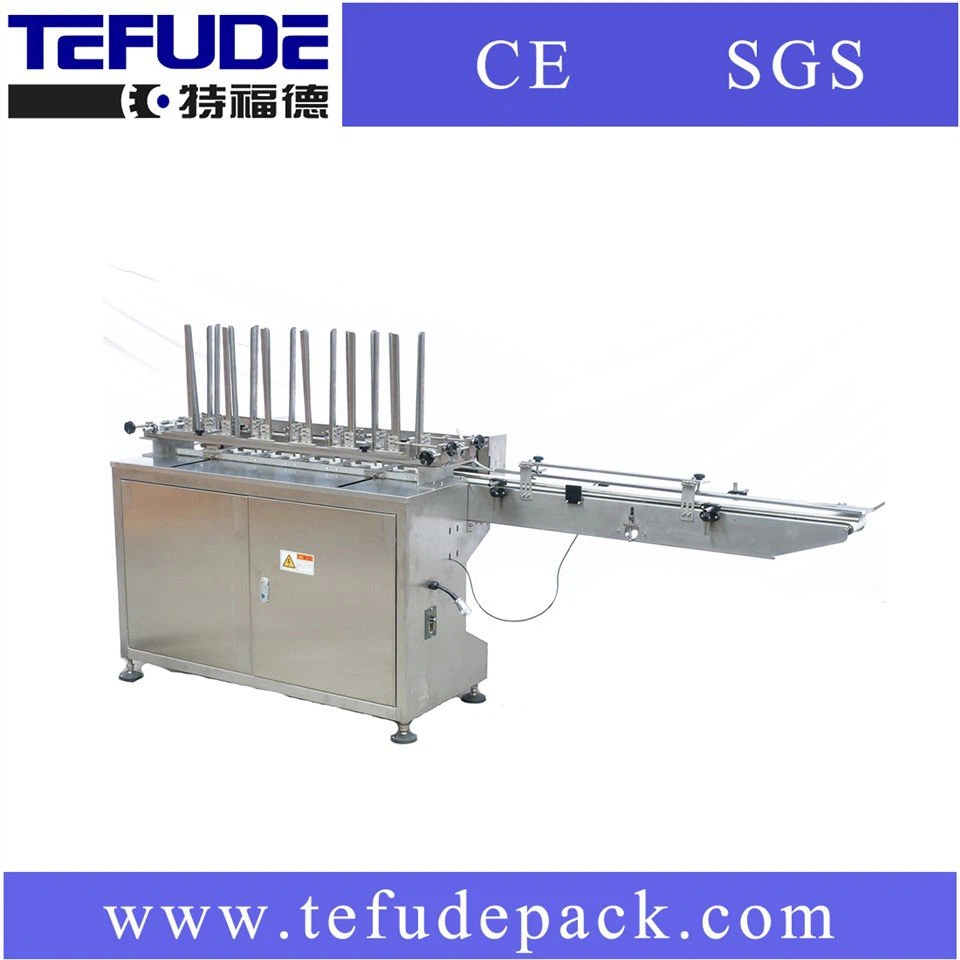

An automatic tray loading packing line has the advantage of a simple transmission system, more reliable working, and more convenient to repair. The automatic tray loading line can automatically eliminate the material when the conveyor is congested to prevent the machine to stop, and then improve the working efficiency. The automatic tray loading packing line is fully automatic, which only demand a few workers to operate which will help the enterprise to save labor cost and reduce contact with the material in the packing process to meet food hygiene requirement.
Machine Parameters
|
Packaging |
Bag |
Material Type |
Solid |
|
Packing Speed |
80-200bags/min |
Packaging Material |
Plastic |
|
Core Component |
PLC, Motor |
Driven |
Electric |
|
Machine Dimension |
(L)8000*(W)2200*(H)1500mm |
Power Supply |
6.0KW/220V 50HZ |
|
Usage |
Feeding And Tray Loading Packaging |
Main Feeding Belt Width |
600/700/800/1000mm |
|
Packing Film |
OPP/CPP, PT/PE, KOP/CPP, ALU-FOIL |
Packing Type |
Full Automatic |
|
Warranty |
1 year |
Trademark |
TEFUDE |
|
Transport Packaging |
Normal Export Wooden Case Packaging |
Origin |
China |
|
Application Range |
Moon cake, cake, bread, durian cake, cupcake, pastry, biscuit, egg yolk puff, rice cracker, etc. Packing with the tray or without tray. |
Remark |
custom-made |
Main Function And Characteristics
1. The packing speed of the machine is adjustable according to the specific product and packing requirement from 80 bags/min to 200 bags/min.
2. It can automatically be sorted, thrown deoxidizer, loaded in a tray, and packed without manual operation in the whole process to reduce contact with the food to meet food hygiene requirements.
3. The system can automatically separate the tray and load the product in the tray.
4. It adopts high sensitive and highly precise electric eye to track the material position accurately.
5. It’s easy and convenient to operate, besides, it’s stable and reliable to run with high precise control and low consumption.
Machine details
Transport products from one location to another, without manual intervention. Food grade anti-bacterial conveyor belt, PU belt two -color optional(blue and white)

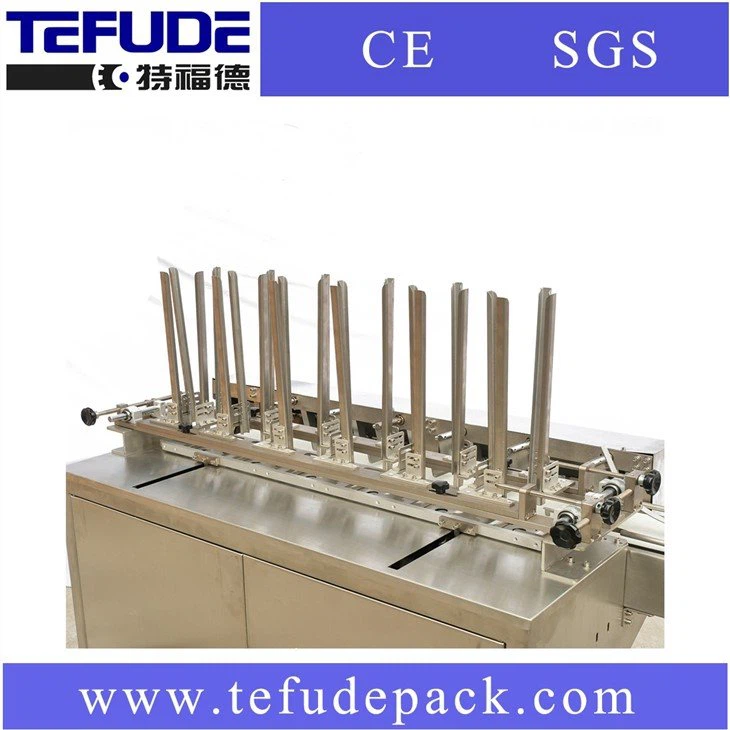

Through the mechanical program design, achieve automatic feeding, automatic opening the tray, and loading product in the tray
Enable accurate and efficient tracking of objects, improving safety, enhancing productivity
Anti-cutting product, standby function without product.
Beautiful and tight sealing.
tray packaging machine flow chart
Application
Apply in sorting and packing pastry, bread, biscuit, caramel treats, cake, chocolate pie, candy, etc.
After-sales service
1. Engineer or technician is available to service oversea.
2. Technician will install the machine overseas and commission the worker on how to operate the machine and maintenance.
3. 24-hour online service
4. Test video of the machine and installation video will be supported.
If you have any trouble in operating the machine, you’re always welcome to contact us. We’ll do our best to support you to resolve your problem.
