cookie packing machine,stacking machine

The cookie pack machine line is composed of conveyors, steering machines, multi-stage sorting machines, stacking uint, and automatic packaging machines. The entire system is automatically tracked by the SICK electric eye and is precisely controlled by the servo motor. Its main functions are arranging sorting, and automatically distributing the biscuit products, etc., and then orderly transfer the product to the automated packaging unit to positioning packaging. In addition, customers can choose to install automatic deoxygenate supply machines, alcohol spraying equipment, date coding machines, etc. according to their actual needs. The cookie packing machine line can be applied to products that require 2pcs automatic sorting and stacking, or single-chip automatic sorting, and the single-chip packaging speed can reach 250 packs/min. The automatic biscuit stacking line can reduce the waste rate of the product while maintaining the continuity of production, which is more in line with the economic benefits of the enterprise.

Please click to play the video:

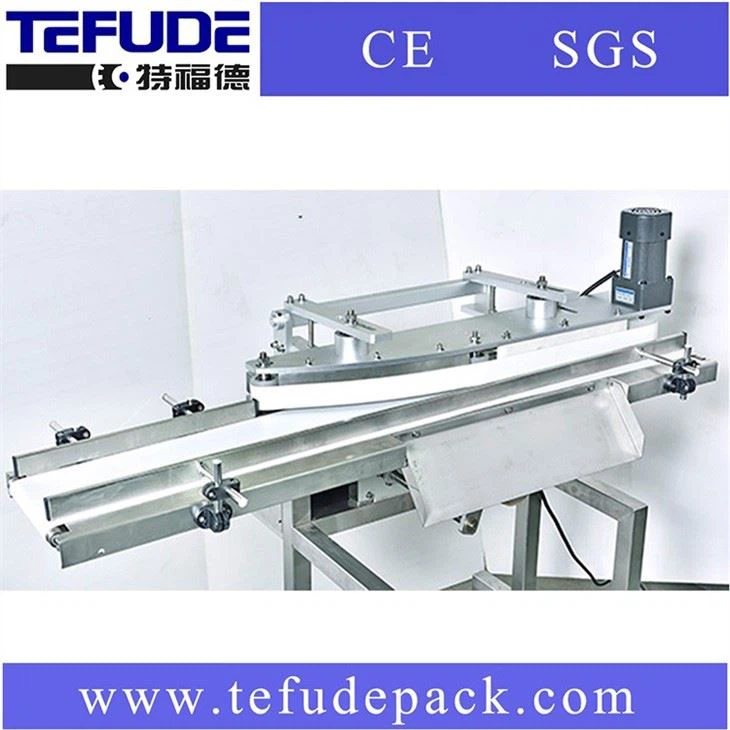

Simple and practical multi-channel sorting mechanism;

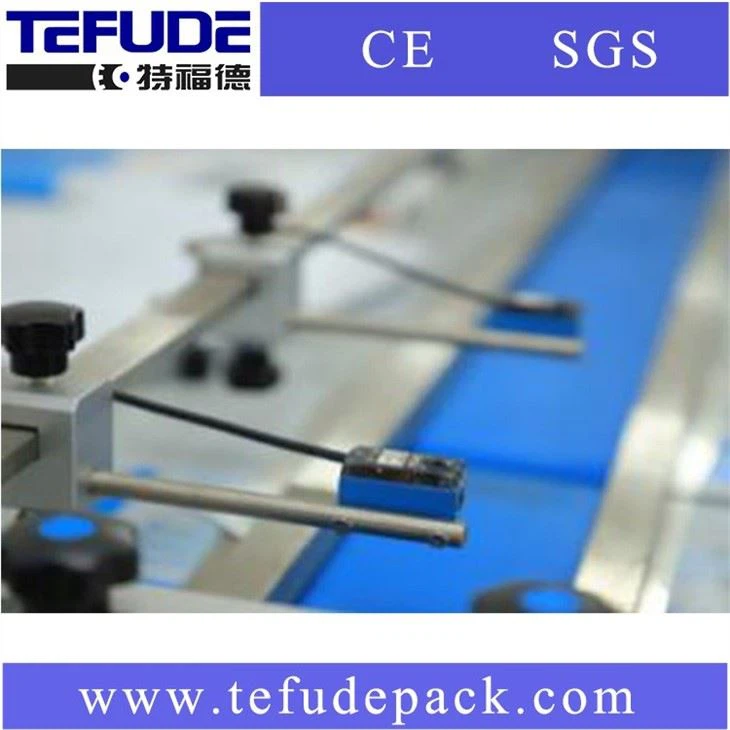

The high-precision photoelectric detection system

Power steering and automatic discharge system

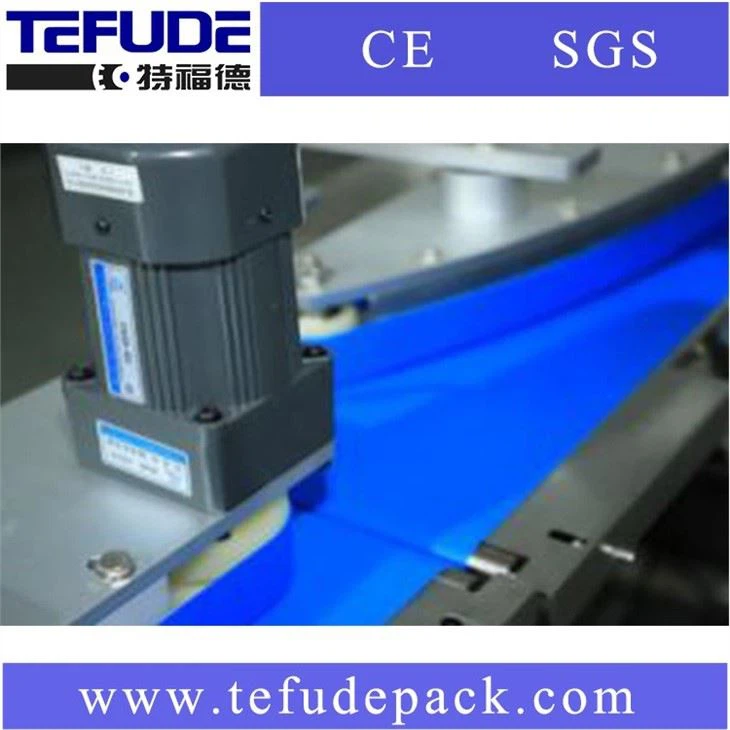

The power servo driving system ensures excellent performance

1. Multi-segment differential speed pulling distance sorting, material sorting, realizing orderly arrangement of materials, precise positioning, high speed, high efficiency, and stability.

2. It adopts a stainless steel baffle or nylon baffle, which is easy to operate and easy to clean.

3. The belt of the sorting machine can be quickly disassembled and assembled without tools, and a slag tank is fitted under the belt and at the interface, which is convenient for maintenance and cleaning, and saves time and manual work.

4. The overall structure is simple, the operation is simple, the cleaning is convenient, and the maintenance is convenient. The replacement and adjustment of products of different specifications are simple and easy to operate, and the parameter setting is simple.

5. The conveyor belt is a food-grade blue sterilized PU belt, optional selection with the anti-sticking belt, white PU belt, etc.

6. The control system adopts electrical components, intelligent PLC control, touch screen display, friendly man-machine interface, and simple, intuitive, and convenient operation.

1.    Power supply type: AC 220V 50Hz;

2.    Total power: 2.8Kw (material sorting line) + 6.5Kw (packaging machine); it depends on the actual situation of the customer

3.    Floor area: not less than 15 square meters (length 7m, width 2m); according to the actual situation of the customer

4.    The speed of the whole line is up to 150-250 packs/min;

Application Scope:

The biscuit stacking line is suitable for products with regular shapes products sorting and packaging, such as walnut crisps, cookie biscuits, and cookies, etc. The front end can be connected to the production line to realize automatic continuous feeding or manual feeding.
