About Us
Foshan TEFUDE Automation Science & Technology Co., Ltd. is a 13-year automatic packing machine manufacturer and supplier. We can do customization or make adjustment according to customers' production needs. Our automatic packing machine can be easily connected with any production line. The operation and maintenance process is very simple and convenient.
Up to now, we have served over 50 countries. Our 24 national patents and CE certification guarantee professional quality for you. In addition, we offer onsite technical support and free training courses. No worries about the technical issues.
Online Company and Factory Tour

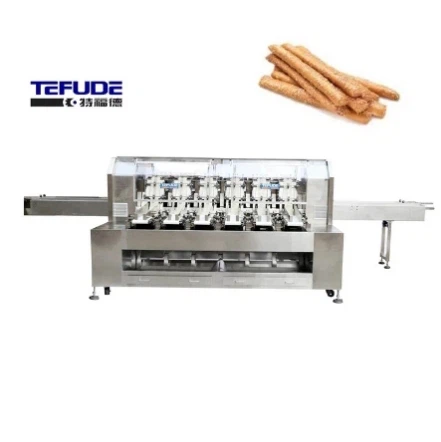

Our automatic biscuit packing machine can realize a series of tasks, including automatic feeding, sorting, counting, and packaging, etc. In this process, it can automatically finish packaging according to the specified quantity, weight, shape and size. Moreover, the biscuits will not be damaged or deformed during the entire process. No manual operation is required throughout the process. Reduce contact with food. Meet food hygiene requirements.
Technical Parameters
We can do customization or make adjustment, according to your actual situations. Please directly contact us for more details.
|
Product Name |
Automatic Biscuit Packing Machine |
|
Power Supply Type |
AC 220V 50Hz |
|
Total Power |
2.8Kw (material sorting line) + 6.5Kw (packaging machine) It depends on the actual situation. |
|
Floor Area |
not less than 15 square meters (length 7m, width 2m) according to the customer's actual situation |
|
Packing Speed |
up to 150-250 packs/min |
| Applications | It is suitable for packing biscuits of various quantity, weight, shape, size. |
| Packing Material |
OPP,PE, PVC,OPP/CPP,PT/PE,KOP/CPP etc., |
Machine Features
1. Automatic Feeding and Sorting System
(1) The food grade PU conveyor belt and high degree sterilization ensure safe feeding. Options: blue belt, white belt, anti-sticking belt.
(2) When the conveyor belt is blocked, materials can be automatically removed to prevent shutdown failures.
(3) You can add a robotic arm to achieve high-precision, high-speed, stable and safe biscuit sorting. At the same time, you can change the robot arm clamp to adapt to products of different materials, shapes and sizes.
2. Automatic Counting System
Using highly precise SICK electric eye tracking system. The material position can be accurately controlled with remarkable sensitivity.
3. Automatic Packaging System
The pallet can be opened automatically through a mechanical program. The product can be loaded into the pallet automatically. Packaging speed can be adjusted based on specific product and packaging requirements.
4. Custom Options
Your packing machine can be equipped with mixed gas, nitrogen, gusset device, pressing bar, automatic deoxygenate supply machine, alcohol spraying equipment, date coding machine, etc. We only list the most popular custom options. Directly contact us to get more details.
5. Internal Systems and Parts
(1) PLC control system. Touch screen. User-friendly menu functions. Real-time interactive operations. Easy and quick adjustment.
(2) Multi-stage frequency conversion and speed adjustment. Servo drive control. Stable and reliable operation. High control accuracy. Low energy consumption.
(3) Carbon steel body. High precision seals. All parts in contact with food are made of stainless steel material.
(4) Safety prevention system. Emergency stop function. Warning Light.
Our Honours and Certificates
- Obtained 24 national patents
- Obtained CE, SGS certifications
- In 2021, won the title of "Top 10 Bakery Packaging Enterprises in Guangdong Province"
- Awarded the title of "High-Tech Enterprise" by Guangdong Province, China
- Certified Supplier of Made in China, the famous B2B platform.
