Product Description

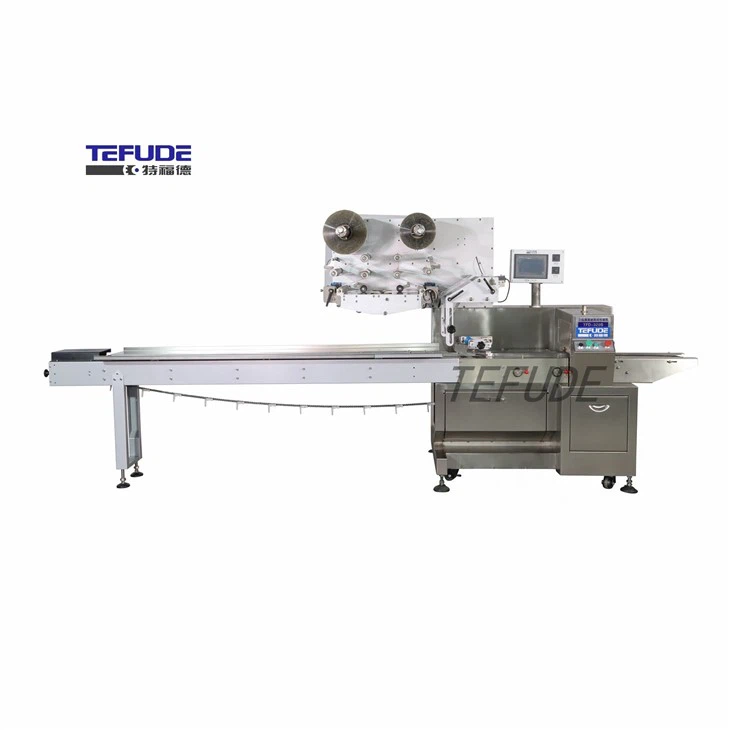

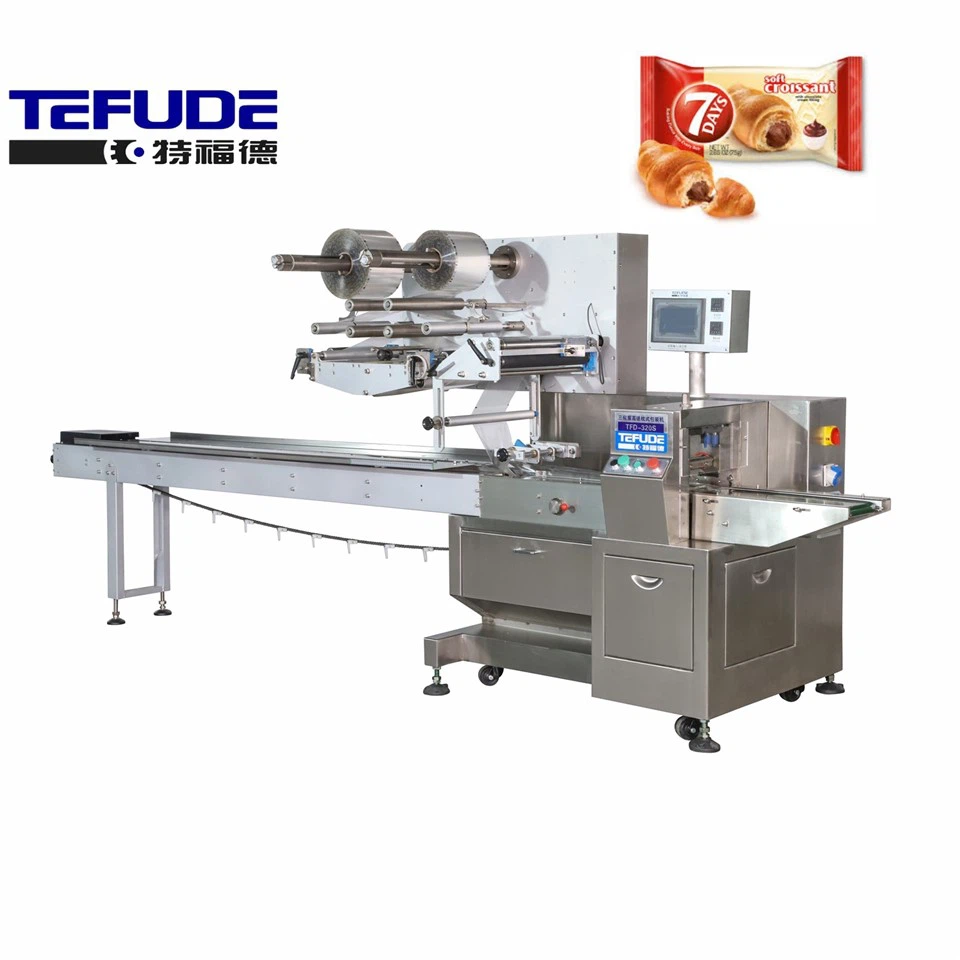

The auto splicer flow wrapper is truly remarkable, boasting a range of advanced features that make it a top choice for high-speed automatic packaging. One of the machine's most impressive capabilities is its ability to perform direct automatic splicing, ensuring that there is no need for downtime while changing wrapping film. In addition, the automatic film splicing system is incredibly precise and reliable, allowing for streamlined operation and maximum efficiency.
With independent servo motors controlling the cross and center seals, this flow wrapper provides smooth and consistent performance at all times. The user-friendly human-machine interface makes it incredibly easy to adjust settings and customize the machine to meet your exact needs.

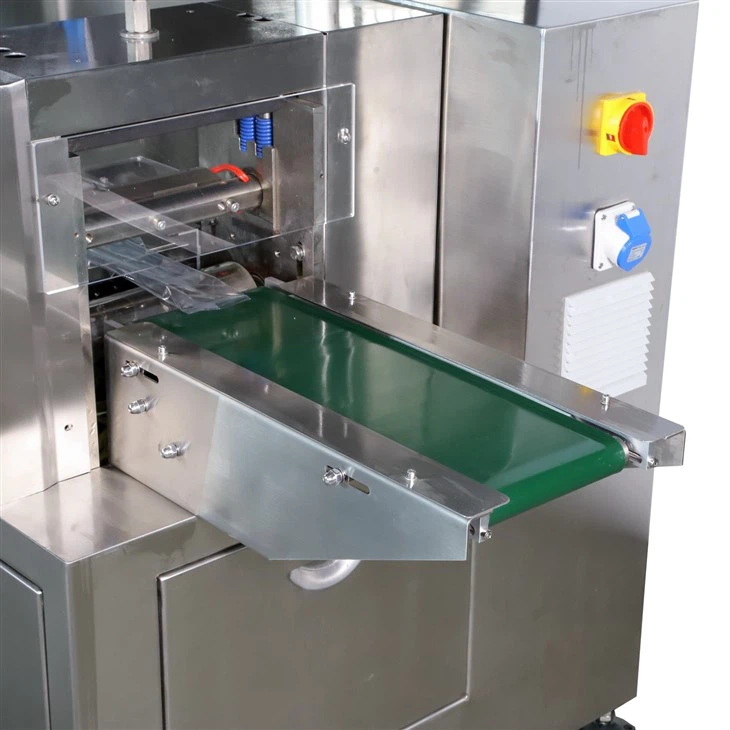

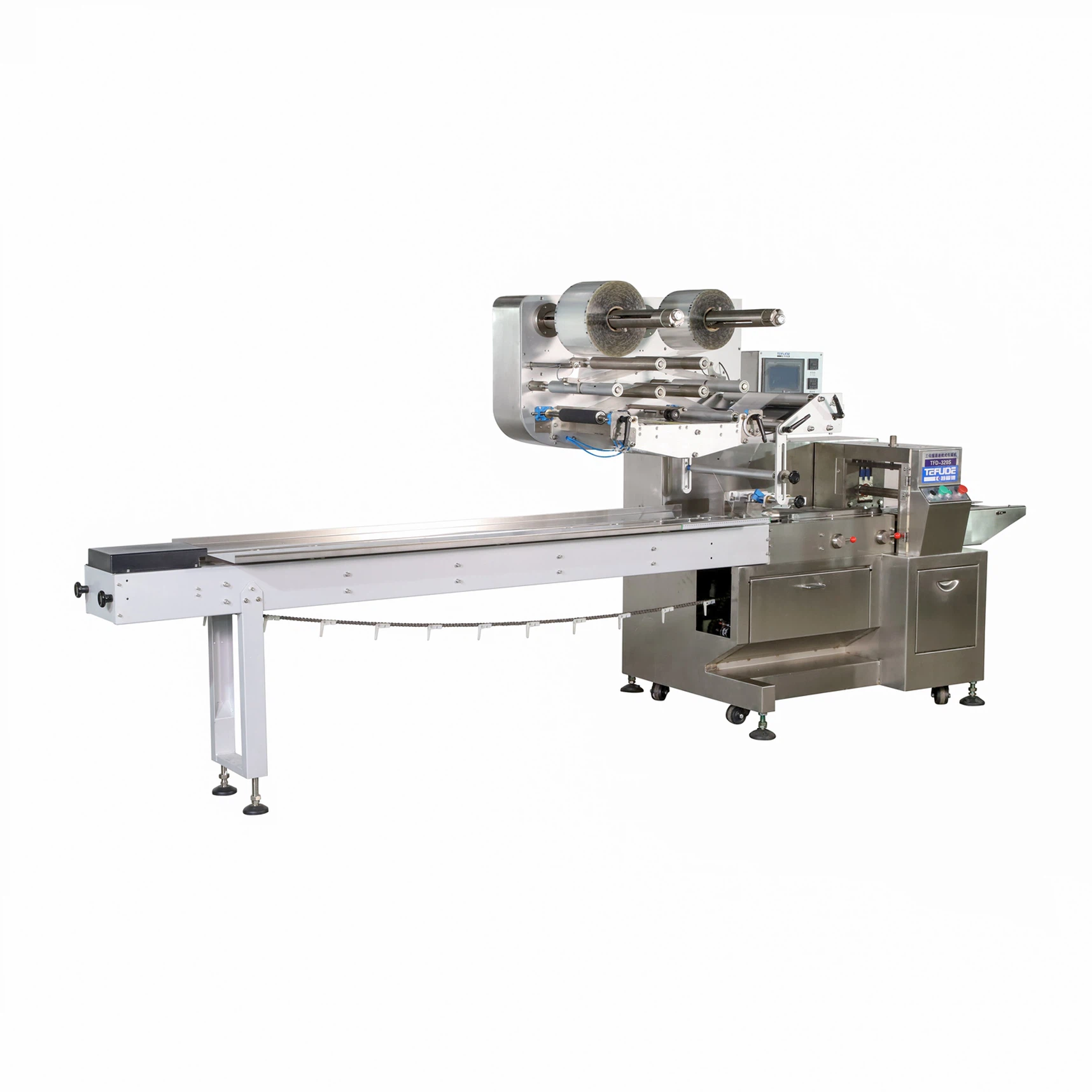

Machine details
Process flow chart:
Technical Parameter
|
Mode of product |
TFD-320DS |
TFD-380DS |
TFD-480DS |
|
Packing speed |
35-300bags/min |
35-300bags/min |
35-300bags/min |
|
Bag size |
(L)80-480(W)30-220(H)5-35MM |
(L)80-480(W)30-220(H)5-60MM |
(L)80-480(W)30-220(H)5-80MM |
|
Film width |
80-300mm |
80-350mm |
80-450mm |
|
Packing material |
OPP/CPP PT/PE KOP/CPP ALU-FOIL |
||
|
Dimension |
(L)4000mmx(W)950mmx(H)1600mm |
||
|
Motor power |
About 5.0KW |
About 5.0KW |
About 5.0KW |
|
Power supply |
AC 200V 50HZ |
AC 200V 50HZ |
AC 200V 50HZ |
|
Gross Weight |
800kgs |
800kgs |
800kgs |
The Main function and characteristics:
- Three-servo motion control system is driven by a powerful CPU for precise and efficient performance.

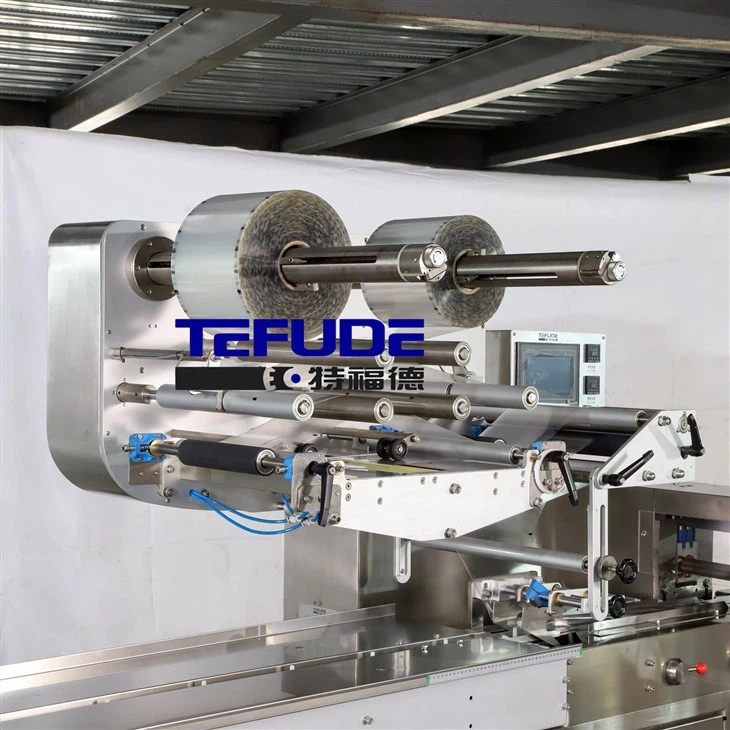

- Double film roll and a dual roll film splice function, which greatly reduces the need for time-consuming film exchanges
- The man-machine interface facilitates convenient and quick parameter setting, enhancing efficiency and ease of use.
- The packing speed and bag length can be easily adjusted, making the process efficient and flexible.
- The electric eye tracking system is highly precise and sensitive, enabling accurate control of product position.
- Separate temperature control system for sealing, ensuring independent operation and optimal performance.
- Our packaging solution is versatile and efficient, ensuring a beautiful and secure seal for a wide range of materials.
- The material is anti-cutting and the product features a standby function. It promotes safety and convenience.
- The system includes fault self-diagnosis and elimination functions, promoting a streamlined and efficient process.
- The optional devices include a printer, nitrogen charging device, and alcohol spraying device, which can enhance the efficiency and effectiveness of the operations.
