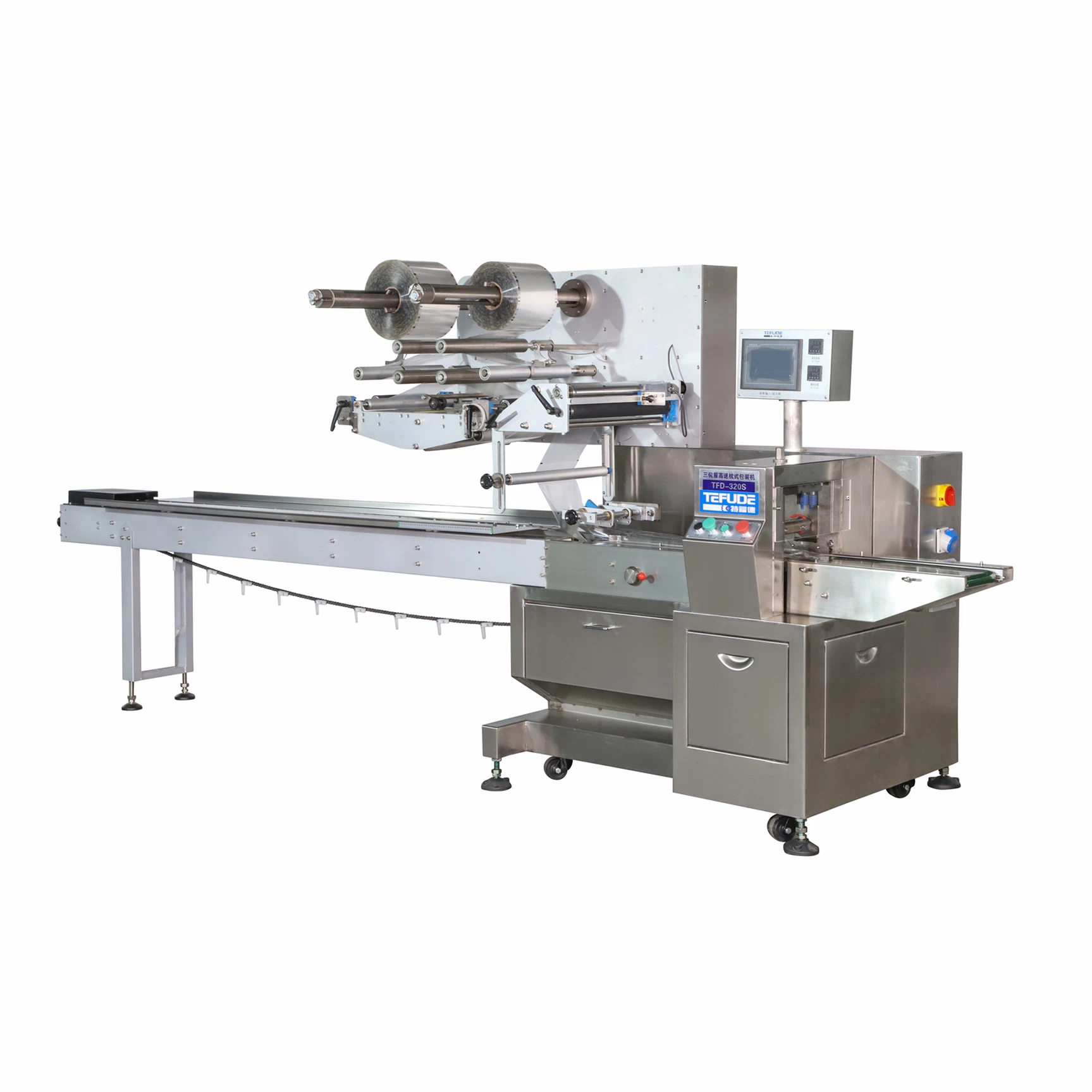

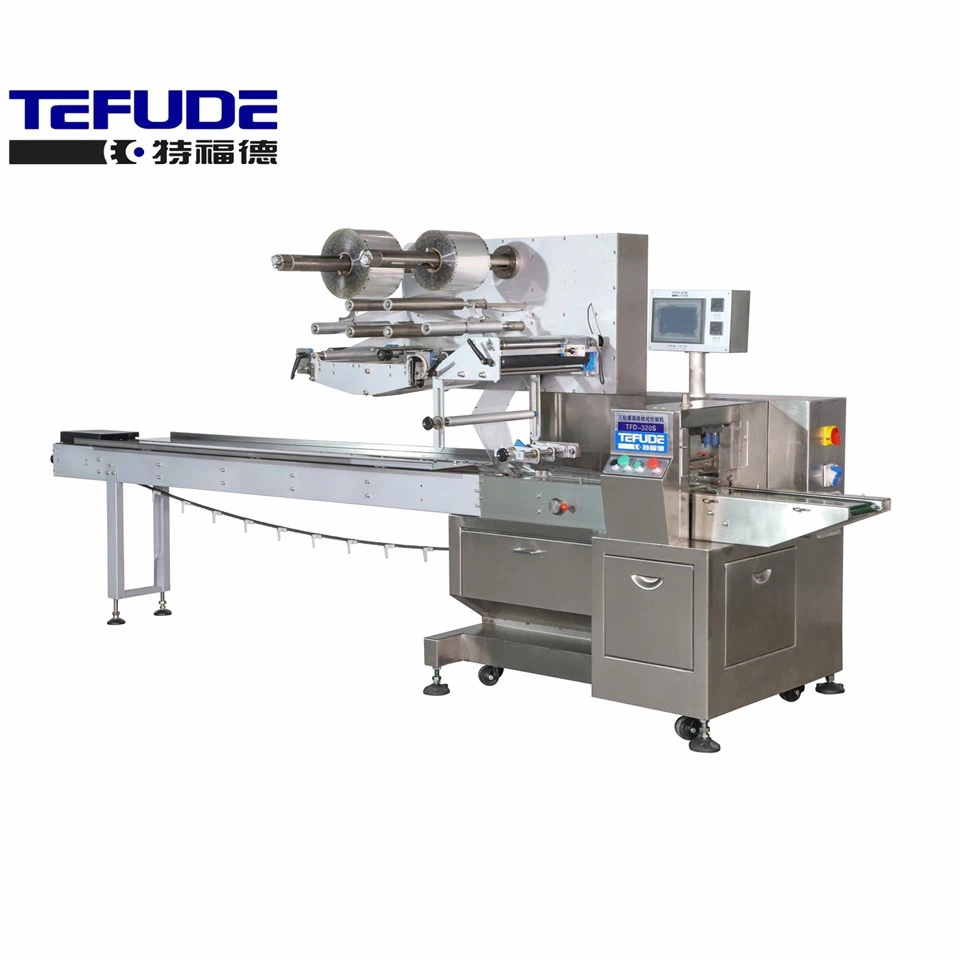

Product Description
The flow wrapper can achieve direct automatic splicing, no need to stop and change wrapping film; high high-precision automatic film splicing system is the biggest highlight of this machine. Independent servo motors control the cross and center seals, providing a smooth operation. The human-machine interface is simple and easy to use, allowing you to adjust settings conveniently.
The film splicing flow wrappers are efficient, reliable, easy-to-use wrapping machines ideal for companies looking to increase productivity.
Process flow chart:
Machine details
Technical Parameter
|
Mode of product |
TFD-320DS |
TFD-380DS |
TFD-480DS |
|
Packing speed |
35-300bags/min |
35-300bags/min |
35-300bags/min |
|
Bag size |
(L)80-480(W)30-220(H)5-35MM |
(L)80-480(W)30-220(H)5-60MM |
(L)80-480(W)30-220(H)5-80MM |
|
Film width |
80-300mm |
80-350mm |
80-450mm |
|
Packing material |
OPP/CPP PT/PE KOP/CPP ALU-FOIL |
||
|
Dimension |
(L)4000mmx(W)950mmx(H)1600mm |
||
|
Motor power |
About 5.0KW |
About 5.0KW |
About 5.0KW |
|
Power supply |
AC 200V 50HZ |
AC 200V 50HZ |
AC 200V 50HZ |
|
Gross Weight |
800kgs |
800kgs |
800kgs |
The Main function and characteristics:
- Three servo driving , motion control system CPU
- Double film roll, Dual roll film splice function, reduce film exchange time
- Man-machine interface and parameter setting and convenient and quick
- Easy to adjust the packing speed and bag length
- With high-precision and high-sensitive electric eye tracking system, accurately control product position.
- Independent sealing temperature control system
- Suitable for many kinds of packaging materials, beautiful and tight sealing
- Anti-cutting material, Standby function without product.
- Fault self-diagnosis & eliminate function
- Optional devices : printer、nitrogen charging device and alcohol spraying device
