Description of Product

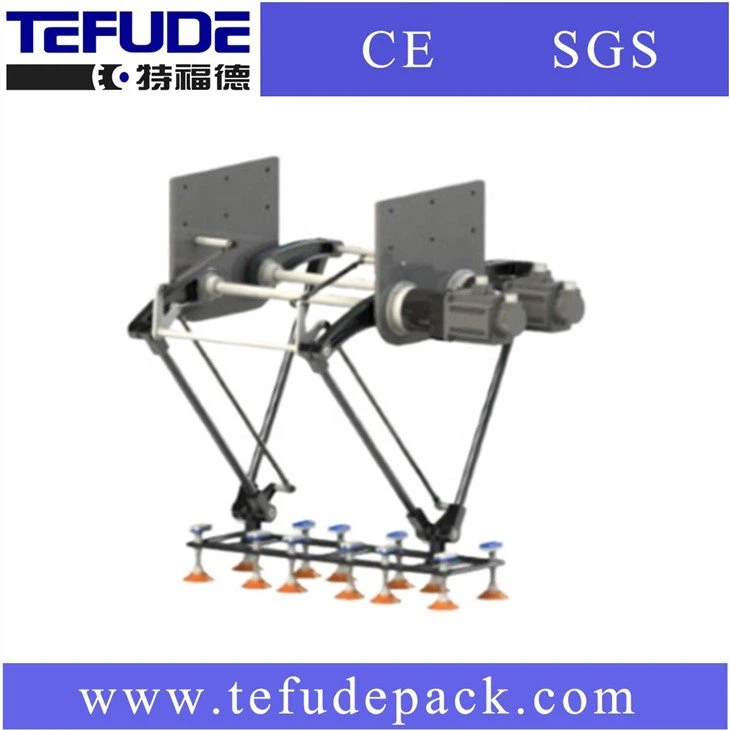

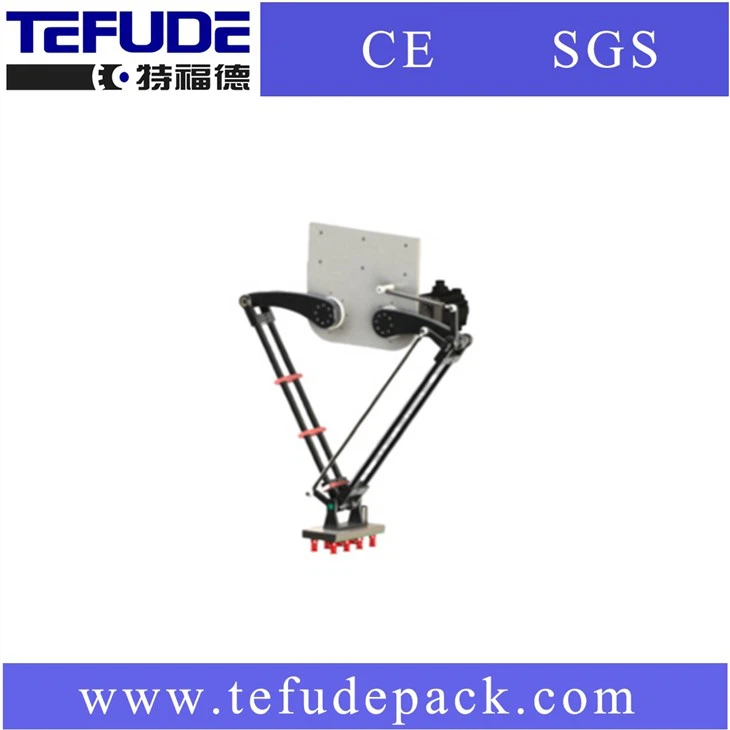

DELTA robot also named parallel robot, which consists of three degree of spatial freedom and one degree of rotational freedom mechanical equipment to realize rapid picking, sorting, boxing, and carrying of the target objects. DELTA robot has the advantage of big carrying capacity, high rigidity, low weight-to-load ratio and good dynamic performance, so that it’s widely used in those working environment harmful to the human body, like pharmaceutical industry, electronic industry and chemical industry. DELTA robot uses it’s vision system and sensors to find products, and then uses it’s high reliable repeated positioning accuracy to finish pick, sort, carry of the products.
Technical Parameter of Product
Model | TFD-800 | TFD-800-X | TFD-1200 | TFD-1200-X |
Number of axis | 2 axis | 2+1 axis | 2 axis | 2+1 axis |
Machine arm span | 800mm | 800mm | 1200mm | 1200mm |
Maximum pick height | 400mm | 200mm | 500mm | 400mm |
Rate load | 8kg | 8kg | 20kg | 20kg |
Maximum load | 12kg | 12kg | 25kg | 25kg |
Repeated positioning accuracy | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
Angle of rotation | - | 360° | - | 360° |
Speed(time/min) | 80(times/min) | 60(times/min) | 80(times/min) | 60(times/min) |
Power | 1.6KW | 2KW | 1.6KW | 2KW |
Power supply voltage | AC380 | AC380 | AC380 | AC380 |
Machine dimension | (L)1500*(W)1300*(H)2200mm | |||
Main Function And Characteristics
1. DELTA robot can recognize and accurately positioning of the target objects’ shape, feature, status due to it’s visual intelligent recognition system.
2. The advantage of good dynamic tracking function what makes the robot machine has the ability to dynamic capture the target object to greatly improve the working efficiency.
3. The main characteristics of DELTA robot are no accumulative error, high precision, high speed, good dynamic response,compact structure, high rigidity, big bearing capacity and small working space.
4. So far, robot machine has applied in various industry due to it’s high flexibility.
5. The parallel structure of this robot machine is completely symmetrical and has good isotropy.

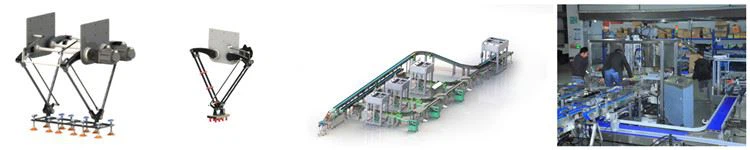

Details of Product
Flow Chart
Application

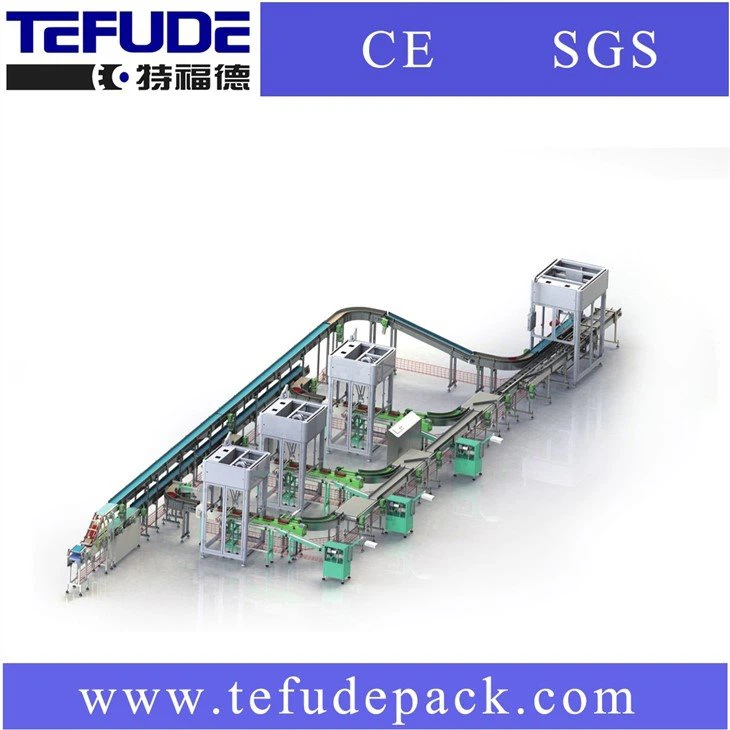

Mainly applied in product sorting, feeding in tray or box, secondary loading in tray or box.
About us
We have more than 10 years experience in custom-made non-standard packaging machine for both abroad and domestic customers. A group of outstanding and rich experience engineer make us have ability to resolve the packaging problem for the customer. We are willing to listen to the customer’s requirement and design the solution for them as per their specific request.
After sales service
1. Engineer or technician is available to service oversea.
2. Technician will install the machine oversea and commissioning the worker how to operate the machine and maintenance.
3. 7/24 hours online service
4. Test video of the machine and installation video will support.
If you have any trouble in operating the machine, you’re always welcome to contact us. We’ll do out best to support you to resolve your problem.
