About us
TEFUDE Company was established in 2012. It is a high-tech enterprise specializing in the design, research and development, production, sales, and service of automatic tray loading and packaging solutions, case packing and stacking projects, and automated packaging production lines.
Our products cover a wide range of packaging equipment for industries such as food, medicine, daily chemicals, and electronics. We also offer customized solutions to meet your production requirements.
Product Description
The Collaborative Robot Palletizer is equipped with an intelligent control system, path-planning algorithms, and graphical programming, the robot ensures simple and efficient operation. Force-control sensors/ultrasonic sensors are employed for positioning and collision avoidance, delivering high safety performance. It is widely applicable in palletizing, logistics, warehousing, assembly, and heavy-load handling scenarios.
Product Video
Models and specifications:
|
Model |
TFD-RP4-2200-30 |
TFD-RP4-2200-50 |
|
Axis |
4 |
4 |
|
Pick and Place Height (Vertical) |
2200mm |
2200mm |
|
Working Radius |
R2200mm |
R2200mm |
|
Pallet Specification |
1200×1300mm |
1200×1300mm |
|
Payload (Maximum) |
30kg |
50kg |
|
Palletizing Speed |
|
|
|
Repeat Positioning Accuracy X,Y,Z |
±0.1mm |
±0.1mm |
|
Repeat Angle Accuracy |
±0.2° |
±0.2° |
|
Rotation Angle |
±360° |
±360° |
|
Power Supply Voltage |
AC380 |
AC380 |
|
Rated Power |
4.5KW |
8.7KW |
|
I/O interface (expandable) |
|
|
|
Installation |
|
|
|
Ingress Protection |
IP54 |
IP54 |
|
Noise Level |
＜75dB |
＜75dB |
|
Machine Weight |
160kg |
175kg |
|
Relative Humidity |
RH：20-80% |
RH：20-80% |
|
Operating Temperature Range |
0℃∼40℃ |
0℃∼40℃ |

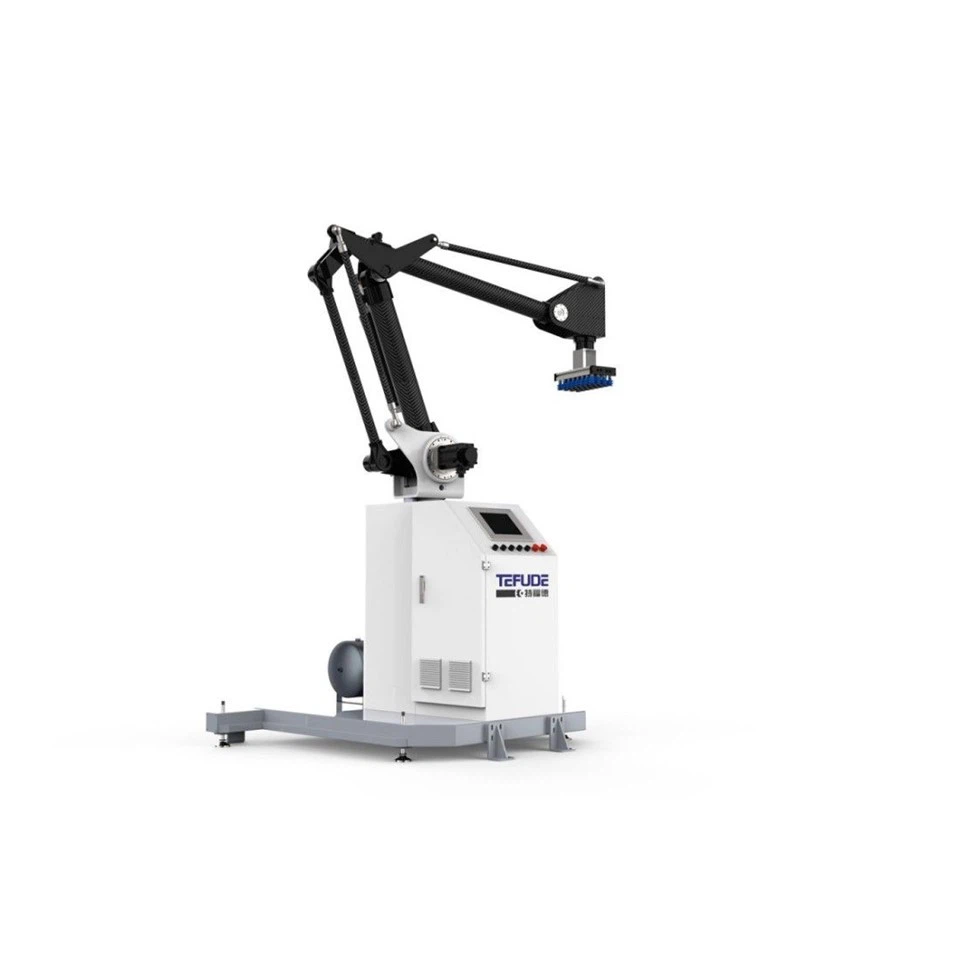

Machine picture
Size Drawing Display
Main features
Dedicated robotic motion control system with high repeatability precision.
Palletizing path planning and graphical programming for easy installation and commissioning.
Simple, efficient, and rapid deployment.
High payload capacity design, with a gripper interface that supports complex fixtures or suction cups.
Long service life, simplified operation, minimal wiring, and compact footprint.
Low-cost maintenance, with remote monitoring and maintenance via network.
After sale service
1.We provide on line technical support to ensure stable operation of the equipment.
2. We provide one-stop service from design,customization to installation and commissioning.
3. Technicians are available to send to your place to installation and commissioning,training customer to master the machine.
