Description of Product
Rectangular robot can replace of manpower and improve production efficiency that’s why it’s widely used in industry production of loading case, stacking, sorting, carrying and feeding. Comparing with joint robot, rectangular robot is simple and economic which construction cost is low, and it’s easy to train workers and repair. The rectangular robot is composed of some linear motion units, driver motor, control systems and end operator.
Technical Parameter of Product
Number of axis | 3 axis/6 axis |
Maximum pick height | 1000mm |
Horizontal motion distance | 2000mm |
Rated load | 30kg |
Maximum load | 50kg |
Repeated positioning accuracy | ±1 |
Speed(time/min) | 12-24(times/min) |
Power | 4.5KW |
Power supply voltage | AC220 |
Machine size | (L)2000*(W)1250*(H)2200mm |
Main Function and Characteristics
1. Rectangular robot has good effect of packing: it can arrange the material neatly and it’s stroke can put the material in the bottom of case stably to ensure the status of encasing.
2. In case of ensure packing efficiency at the same to reduce the frequency of grabbing the material which it’s good for the equipment’s stable operating.
3. It has the advantage of big distance of horizontal and vertical motion.
4. This robot machine specially suitable for various product’s batch flexible operation.
5. Customized according to specific requirement and application circumstance.

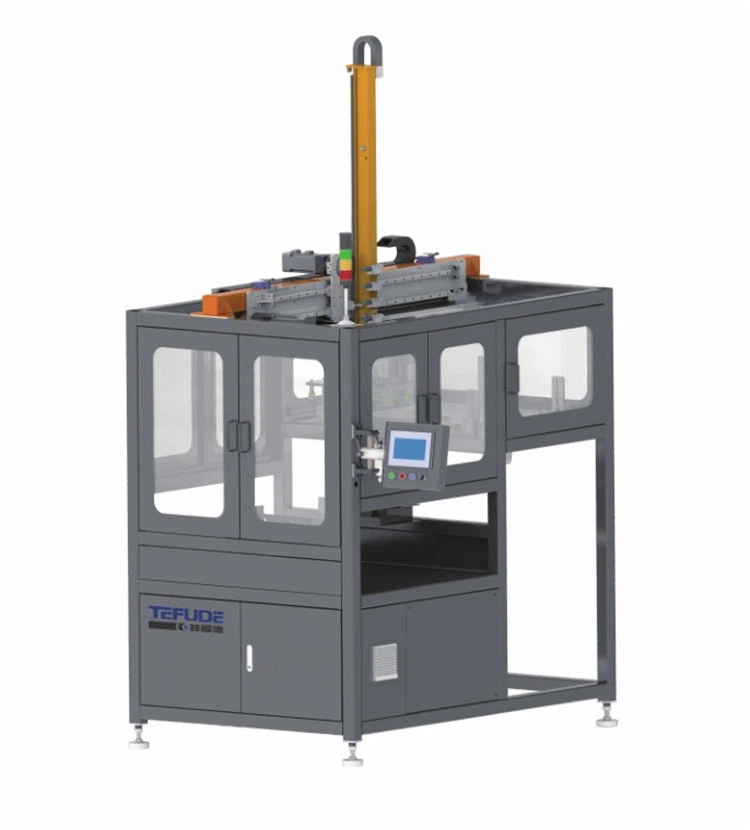

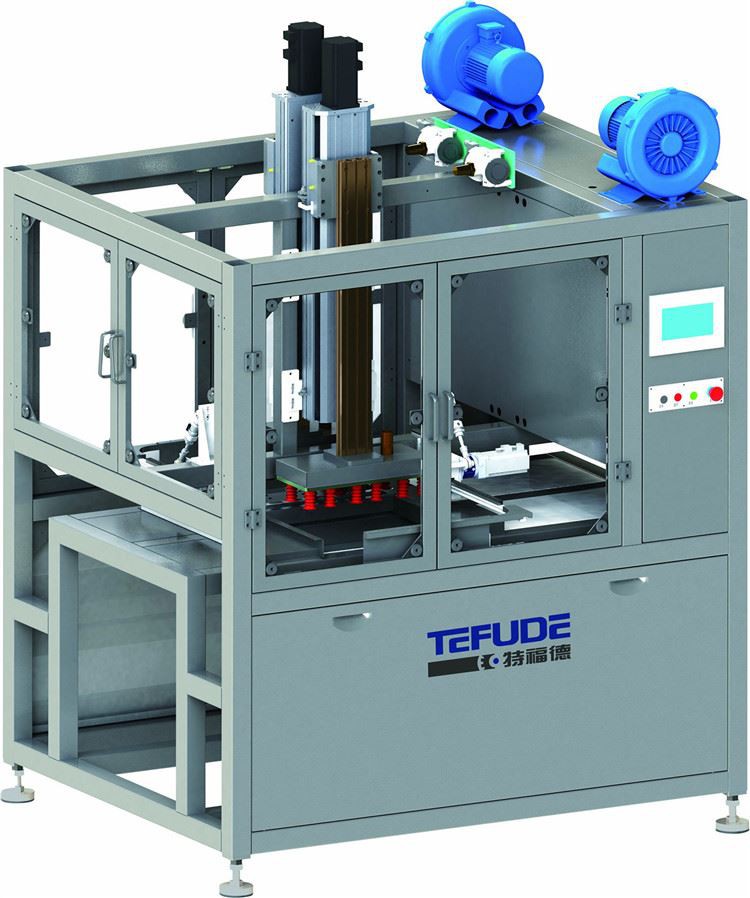

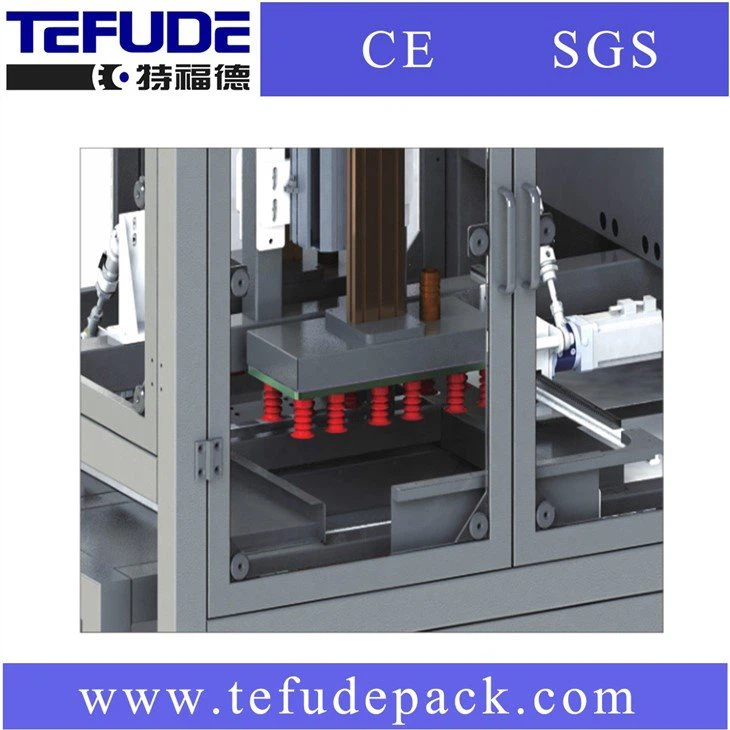

Details of Product
Application
Rectangular robot widely used in distribution, sorting, encasing of bake products, frozen products, snack, pharmaceutical etc.
About us
TEFUDE Automation Technology company specialized in independent packaging equipment and secondary packaging equipment. Strong self research and development ability, we have a more than 10 people engineering and technician team. Launching a number of new products irregular, and acquire many of product patents. We have rich experience in custom-made non-standard food packaging solution, and our automatic opening tray and loading into tray equipment was recognized by many customers.
After sale service
1. 24/7 online service, make your query resolved in time.
2. Installation video provided.
3. Technician is available to service abroad.
4. Engineer is available to design the packaging solution.
