shrink wrap machine
The shrink wrap machine is suitable for all kinds of shrink films. The shrink wrap machine adopts digital temperature controller, which makes operation easier. There are shrinking tubes on the top, bottom and sides of the shrinking room. The powerful fan inside the tunnel makes the air heating equally. The speed of the conveyer is adjustable. And you can choose roller or net conveyor as your request.
Shrink wrap machine application:

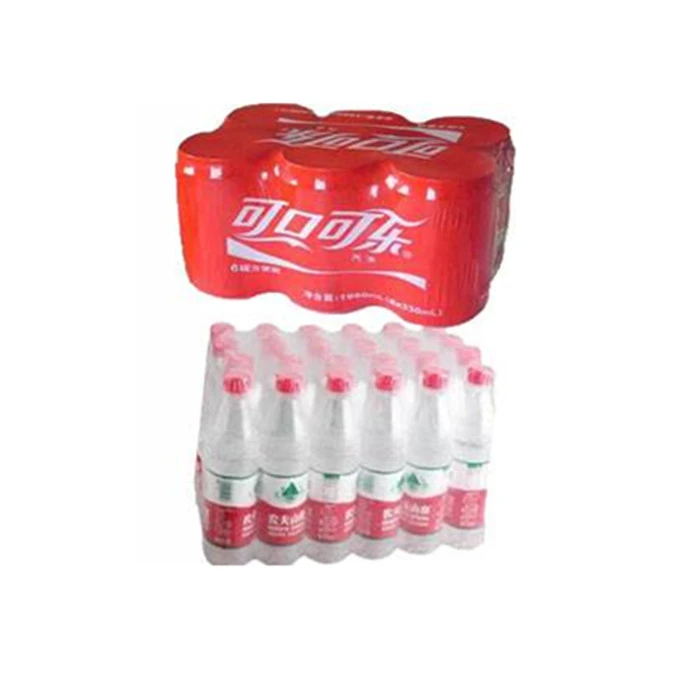

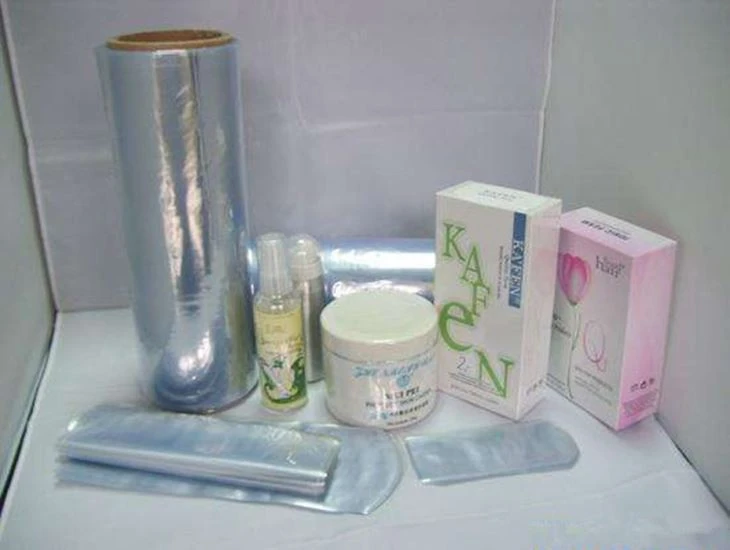

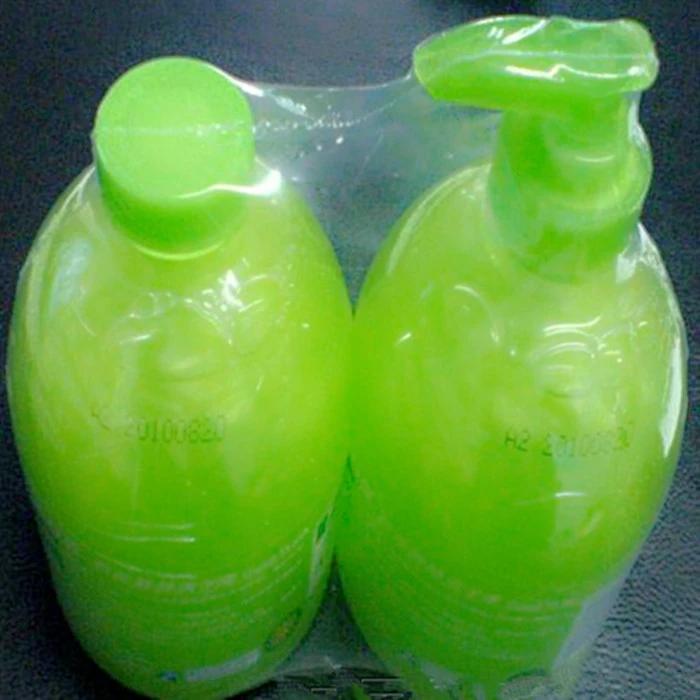

The shrink wrap machine suitable for packaging of various items such as glass bottles, paper boxes, electronic appliances, stationery, books,CD, hardware tools, daily necessities, medicines, cosmetics, beverages, fruits, commemorative labels and so on.
Shrink wrap machines type:
Model | TFD-BS100 | TFD-BS200 | TFD-BS300 | TFD-BS400 | TFD-BS500 |
Power supply | 3phase 220V,380-460V/50-60Hz | ||||
Heater power | 18KW Adjustable | 19KW Adjustable | 20KW Adjustable | 20KW | 20KW |
Conveyer speed | 0-10m/minute | ||||
Tunnel size(L*W*H) | 1200*450*350MM | 1200*500*380MM | 1200*600*400MM | 1500*500*460MM | 1500*600*460MM |
Conveyer loading | 25KG MAX. | 25KG MAX. | 25KG MAX. | 30KG MAX. | 30KG MAX. |
Machine size | 2200*710*1420MM | 2200*760*1450MM | 2200*860*1470MM | 2500*830*1660MM | 2500*930*1660MM |
Machine weight | 190KGS | 210KGS | 250KGS | 400KGS | 450KGS |
Shrink film | PE,POF,PVC,PP | ||||
Shrink wrap machines characteristics
Two powerful fans inside the tunnel ensures sufficient circulating air
Strengthen conveyor motor to ensure delivery smoothly
Super-strong cooling system to ensure a perfect shrinkage
With solid roller, and silicon rubber case at the external which can withstand large weight objects and not easy to wear
Suitable for various types of thermal shrinkable film
Intelligent temperature controller
All-around thermal shrinkage
Delivery mode: conveyor chain or conveyor net chain
